ARB 2019+ Ford Ranger Recovery Point

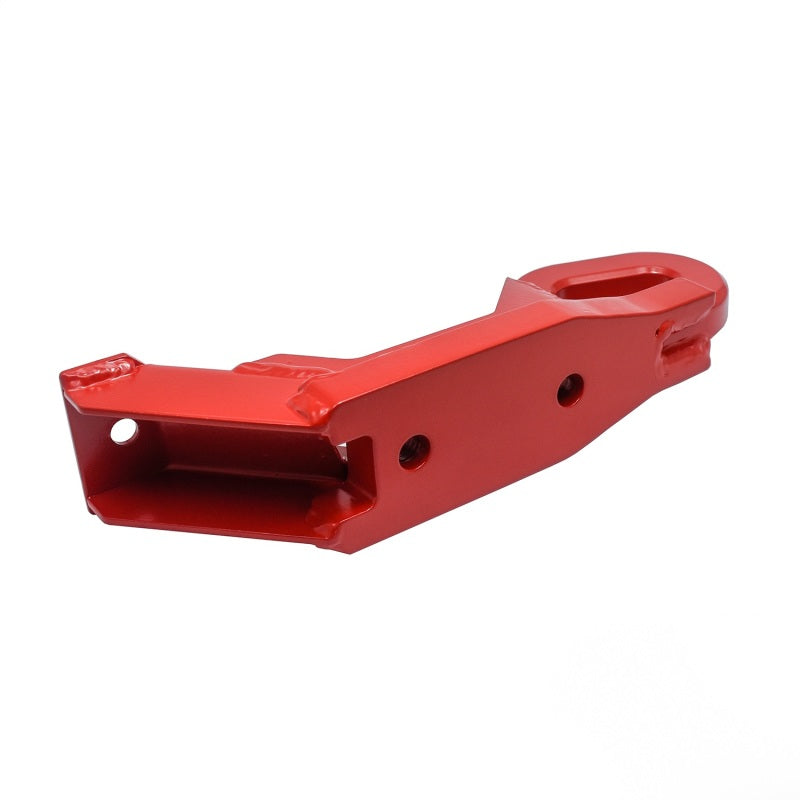

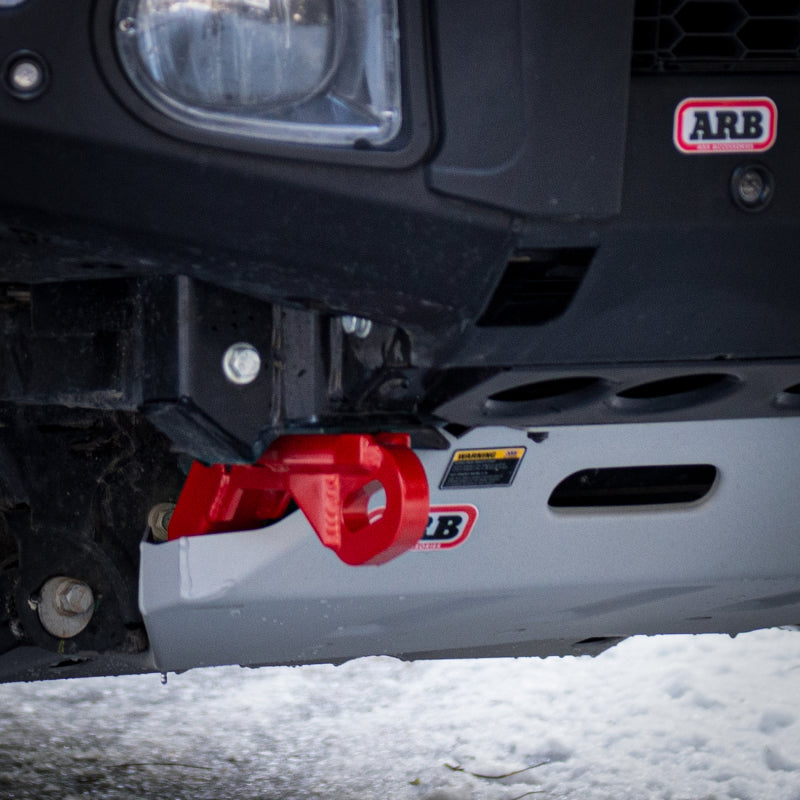

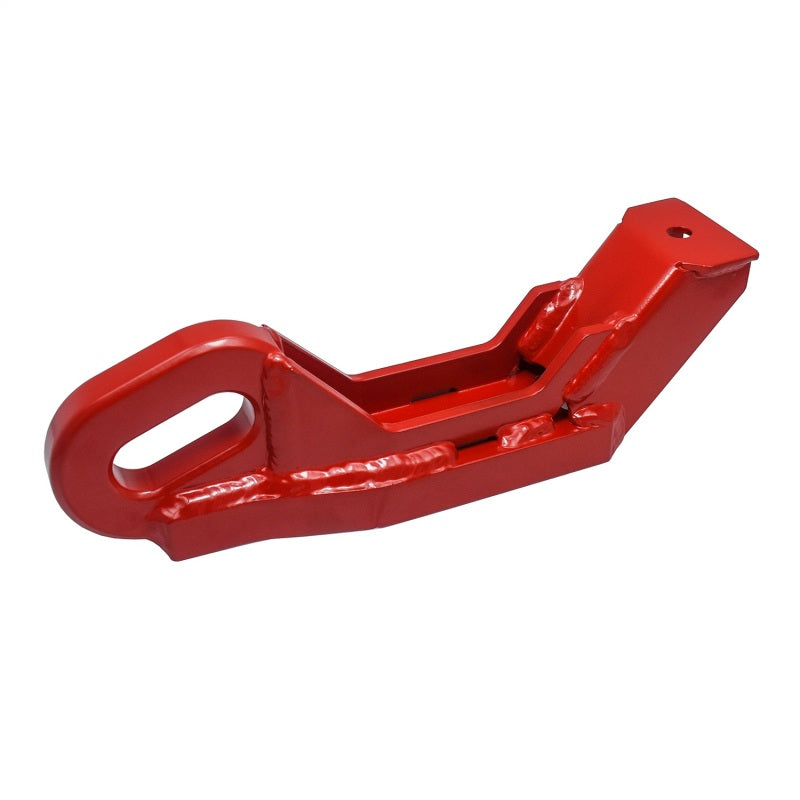

ARB has developed a recovery point that can be fitted to either the left-hand or right-hand side of the Ford Ranger chassis. The recovery points have been designed to fit with the original equipment stone guard, or in conjunction with ARB Under Vehicle Protection. To ensure there are no inappropriate forces exerted on the shackle during an angled recovery, the Recovery Point has a long slot that allows the recommended 9500lb bow shackle to be fed through and the 17600lb strap attached via the pin instead of the bow. This distributes the recovery force evenly through the shackle to avoid side loads on the pin.

• Attachment instructions included for shackle and recovery strap.
• Can be fitted to either left or right-hand side of the chassis.
• Rated for angled pull up to max turn angle of front wheels.
• Long slot allows for even recovery force distribution.
• Fits with original equipment stone guard or ARB UVP.
• The recovery point re-uses OE tow hook fasteners.
• Important safety information is also included.
• Recovery Point

This Part Fits:
